**RS CARBURETOR**

The RS carburetor kits from MIKUNI are available for a wide range of different motorcycles. These carburetors have proven themselves to be very effective over the years, both on racing and street motorcycles. The advantages of these carburetors compared to the standard carburetors are the more spontaneous throttle response and the higher power output. The more spontaneous throttle response results from the throttle slide being operated directly by the throttle cable, in contrast to constant pressure carburetors, which are only installed as original equipment, where the throttle slide is raised with a delay by a diaphragm. The higher power output is achieved on the one hand by the larger cross-section and on the other hand by the very good flow conditions of the RS carburetor. Important components, such as the main jet, needle jet and jet needle, can be replaced or changed in just a few minutes and without removing the carburetor. The continuously adjustable accelerator pump allows individual adjustment for different driving styles.

***RS - CARBURETOR APPLICATION LIST***
***Please click on the order numbers for further information!***
HONDA
Model	Part number	Carburetor venturi size	Retail price without tax
CX500	TM34-B160	34mm	*558,82 Euro*
GL500	TM34-B100	34mm	*558,82 Euro*
CB750F / CB900F / CB1100F / CB1100R ( DOHC )	RS34-D17-K	34mm	*906,72 Euro*
CBX750 / SEVENFIFTY	RS34-D18-K	34mm	*906,72 Euro*
CB900F / CB1100F / CB1100R ( DOHC )	RS36-D17-K	36mm	*931,93 Euro*
KAWASAKI
Model	Part number	Carburetor venturi size	Retail price without tax
W650	TM36-B120	36mm	*584,03 Euro*
Z750 TWIN	TM34-B120	34mm	*558,82 Euro*
Z900 / Z1000 / GPZ1100	RS34-D21-K	34mm	*822,69 Euro*
Z900 / Z1000 / GPZ1100	RS36-D3-K	36mm	*852,10 Euro*
Z900 / Z1000 / GPZ1100	RS38-D19-K	38mm	*877,31 Euro*
GPZ900R / GPZ1000RX / ZRX1100 / ZEPHYR 1100	RS36-D8-K	36mm	*881,51 Euro*
GPZ900R / GPZ1000RX / ZRX1100 / ZEPHYR 1100	RS38-D35-K	38mm	*906,72 Euro*
LAVERDA
Model	Part number	Carburetor venturi size	Retail price without tax
500 Twin	TM36-B150	36mm	*584,03 Euro*
All 3-Cylinder models	RS36-C100/120-K	36mm	*852,10 Euro*
SUZUKI
Model	Part number	Carburetor venturi size	Retail price without tax
GS500E	TM34-B110	34mm	*558,82 Euro*
DR750/800	TM36-B78	36mm	*584,03 Euro*
GS1000 / GSX1100 GSXR750/1100 ( Air/oil-cooled ) / BANDIT 1200	RS34-D21-K	34mm	*822,69 Euro*
GSX1100 / GSXR750/1100 ( Air/oil-cooled ) BANDIT 1200	RS36-D3-K	36mm	*852,10 Euro*
GSX1100 / GSXR750/1100 ( Air/oil-cooled) BANDIT 1200	RS38-D19-K	38mm	*877,31 Euro*
GSX1100 / GSXR750/1100 ( Air/oil-cooled) BANDIT 1200	RS40-D1-K	40mm	*877,31 Euro*
GSXR750 / GSXR1100 ( Water-cooled to `95 )	RS36-D4-K	36mm	*931,93 Euro*
GSXR750 / GSXR1100 ( Water-cooled to `95 )	RS38-D20-K	38mm	*960,50 Euro*
GSXR750 / GSXR1100 ( Water-cooled to `95 )	RS40-D2-K	40mm	*960,50 Euro*
TRIUMPH
Model	Part number	Carburetor venturi size	Retail price without tax
Bonneville/Thruxton	TM36-B135	36mm	*584,03 Euro*
All Hinckley 3-cylinder models	RS36-C88-K	36mm	*852,10 Euro*
YAMAHA
Model	Part number	Carburetor venturi size	Retail price without tax
XS400	TM34-B110	34mm	*558,82 Euro*
SRX600	TM34-B65	34mm	*558,82 Euro*
SZR660	TM34/38-B70	1x 34mm / 1x 38mm	*606,72 Euro*
SZR660	TM36/40-B70	1x 36mm / 1x 40mm	*606,72 Euro*
XS650	TM34-B120	34mm	*558,82 Euro*
XS650	TM36-B120	36mm	*584,03 Euro*
XS750 / XS850	RS34-C90-K	34mm	*822,69 Euro*
FJ1100 / FJ1200 / XJR1200 / XJR1300 / XS1100 / XS1100S	RS36-D8-K	36mm	*881,51 Euro*
FJ1100 / FJ1200 / XJR1200 / XJR1300	RS38-D35-K	38mm	*906,72 Euro*
FJ1100 / FJ1200 / XJR1200 / XJR1300	RS40-D12-K	40mm	*906,72 Euro*

**RS- FLATSLIDE / TWIN CARBURETOR**
***Please click on the order numbers for further information!***
*Carburetor* part number	*Application*	*Carburetor venturi size*	*Carburetor pitch*	Retail price without tax
*TM36-B13*	*BMW F650, Bimota BB1*	*2x 36mm*	*72mm*	*584,03 Euro*
*TM34-B160*	*Honda CX500*	*2x 34mm*	*160mm*	*558,82 Euro*
*TM36-B120*	*Kawasaki W650*	*2x 36mm*	*120mm*	*584,03 Euro*
*TM34-B120*	*Kawasaki Z750 Twin*	*2x 36mm*	*120mm*	*558,82 Euro*
*TM36-B150*	*Laverda 500*	*2x 36mm*	*150mm*	*584,03 Euro*
*TM34/38-B70*	*MUZ660*	*1x 34mm / 1x 38mm*	*70mm*	*558,82 Euro*
*TM34-B110*	*Suzuki GS500E*	*2x 34mm*	*110mm*	*558,82 Euro*
*TM36-B78*	*Suzuki DR750/800*	*2x 36mm*	*78mm*	*584,03 Euro*
*TM36-B135*	*Triumph Bonneville/Thruxton*	*2x 36mm*	*135mm*	*584,03 Euro*
*TM34-B110*	*Yamaha XS400*	*2x 34mm*	*110mm*	*558,82 Euro*
*TM34-B65*	*Yamaha SRX600*	*2x 34mm*	*70mm*	*558,82 Euro*
*TM34/38-B70*	*Yamaha SZR660*	*1x 34mm / 1x 38mm*	*70mm*	*606,72 Euro*
*TM36/40-B70*	*Yamaha SZR660*	*1x 36mm / 1x 40mm*	*70mm*	*606,72 Euro*
*TM34-B120*	*Yamaha XS650*	*2x 34mm*	*120mm*	*558,82 Euro*
*TM36-B120*	*Yamaha XS650*	*2x 36mm*	*120mm*	*584,03 Euro*

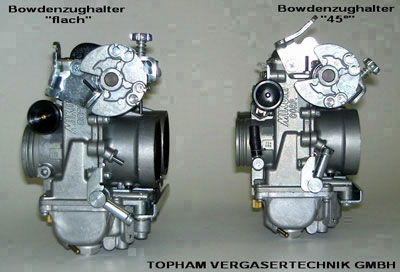

*Should you need a TM 4-stroke twin carburettor that is not listed above -* *no problem - we can manufacture twin carburettors for a wide range of dimensions.* Two different throttle cable bracket versions are possible GASKET-KITS and REPAIR-KITS for RS-FLATSLIDE CARBURETORS
*Carburetor*	GASKET-KIT part number	GASKET-KIT retail price without tax	REPAIR-KIT ( gasket-kit incl. needle valve assy ) part number	REPAIR-KIT ( gasket-kit incl. needle valve assy ) retail price without tax
*2 Carburetors*	*TOP-RS-B-DS*	*48,25 Euro*	*TOP-RS-B-RS*	*73,82 Euro*
*3 Carburetors*	*TOP-RS-C-DS*	*70,03 Euro*	*TOP-RS-C-RS*	*108,54 Euro*
*4 Carburetors*	*TOP-RS-D-DS*	*89,03 Euro*	*TOP-RS-D-RS*	*140,38 Euro*
RS VERGASER - KATALOG *PRICE LIST for RS CARBURETORS and SPARES* *SETTING PARTS and ACCESSORIES* *RS CARBURETOR PARTS LIST* *CUSTOM BUILT CARBURETORS on REQUEST !*

Should you need a TM 4-stroke twin carburettor that is not listed above -

no problem - we can manufacture twin carburettors for a wide range of dimensions.

Two different throttle cable bracket versions are possible GASKET-KITS and REPAIR-KITS for RS-FLATSLIDE CARBURETORS
