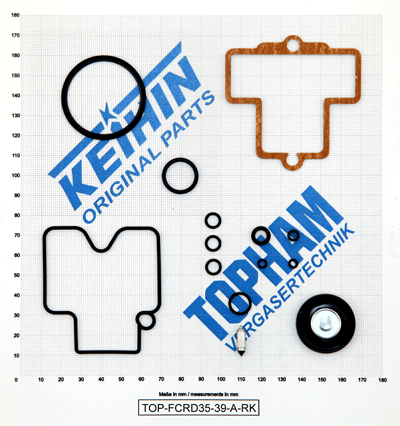

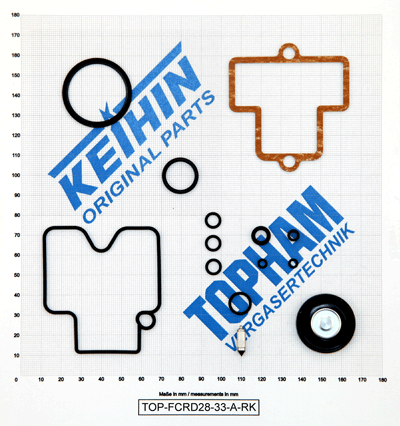

REBUILD KIT COMPONENTS
|
| Qty |
Part number
FCR28 - FCR33 |
Part number
FCR35 - FCR39 |
Part number
FCR41 |
Description |
Position in Drawing |
| 1 |
1031-805-2000 |
1031-806-2000 |
1031-807-2000 |
Gasket / Top cover |
6 |
| 1 |
16958-397-7710-M1 |
16958-397-7710-M1 |
16958-397-7710-M1 |
O-Ring / Float valve |
37 |
| 1 |
16155-ZG8-L100 |
16155-ZG8-L100 |
16155-ZG8-L100 |
Needle / Float valve |
31 |
| 1 |
1202-846-6000 |
1202-846-6000 |
1202-846-6000 |
Gasket / Float bowl |
45 |
| 1 |
16075-935-0060 |
16075-935-0060 |
16075-935-0060 |
O-Ring / Drain screw |
122 |
| 1 |
16075-KG8-9010-M1 |
16075-KG8-9010-M1 |
16075-KG8-9010-M1 |
O-Ring / Pilot screw |
34 |
| 1 |
1099-816-6000 |
1099-817-6000 |
1099-817-6000 |
V-seal / throttle valve |
22 |
| 3 |
W9351-13057 |
W9351-13057 |
W9351-13057 |
O-Ring / Fuel intake |
85 |
| 1 |
16178-548-0040 |
16178-548-0040 |
16178-548-0040 |
O-Ring / Acceleration pump cover |
54 |
| 1 |
W9353-36000 |
W9353-36000 |
W9353-36000 |
U-Ring / Acceleration pump cover |
52 |
| 1 |
1201-055-2101 |
1201-055-2101 |
1201-055-2101 |
Diaphragm / Acceleration pump |
51 |
