JET NEEDLE CHART
for
PE34 - 38 / PJ34 - 38 / PWK33 - 39 / PWM38
CARBURETORS

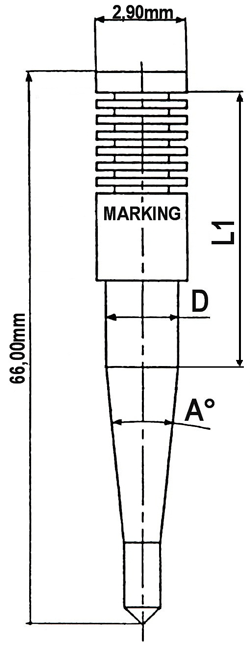

Jet needle type N427-48-Size ( 3 Code letters )

The size/configuration of the jet needle is composed of the following three code letters
and can be customized:

1. Code letter: Taper A
2. Code letter: Length L1
3. Code letter: Diameter D

Example for determinating a jet needle ( see also chart )

Taper of the jet needle A 2°15´ = 1. Code letter F

Length of the jet needle L1 44,00mm = 2. Code letter: M

Diameter of the jet needle D 2,735mm = 3. Code letter: P

Part number jet needle: N427-48-FMP

Marking on jet needle: FMP

Code letter	1. Code letter Taper A in Grad	2. Code letter Length L1 in mm	3. Code letter Diameter D in mm	Clip grooves
A	*-1°00´*	34,55	*2,605*	5
B	*1°15´*	35,00	*2,615*	5
C	*1°30´*	36,35	*2,625*	5
D	*1°45´*	36,80	*2,635*	5
E	*2°00´*	38,15	*2,645*	5
F	*2°15´*	38,60	*2,655*	5
G	*2°30´*	39,95	*2,665*	5
H	*2°45´*	40,40	*2,675*	5
J	*3°00´*	41,75	*2,685*	5
K	*3°15´*	42,20	*2,695*	5
L	*3°30´*	43,55	*2,705*	5
M	*3°45´*	44,00	*2,715*	5
N	*4°00´*	44,35	*2,725*	5
P	-	-	*2,735*	5
Q	-	-	*2,745*	5
R	-	-	*2,755*	5
S	-	-	*2,765*	5
T	-	-	*2,775*	5
U	-	-	*2,785*	5
V	-	-	*2,795*	5
W	-	-	*2,805*	5
X	-	-	*2,815*	5
Y	-	-	*2,825*	5
Z	-	-	*2,835*	5
Retail Price: 11,93 Euro/each without tax
