| MAIN JETS |
| Part Number |
Details |
Available sizes |
Application |
Price
without tax |

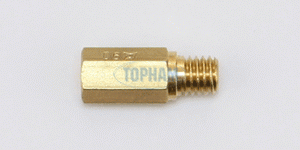

99101-357-Size
|
Wrench size: 6mm
Thread: M5
Overall length: 16,50mm
Thread length: 5,0mm
Hexagon length: 10,5mm |
90 - 92 - 95 - 98 - 100 - 102
105 - 108 - 110 - 112 - 115 - 118
120 - 122 - 125 - 128 - 130 - 132
135 - 138 - 140 - 142 - 145 - 148
150 - 152 - 155 - 158 - 160 - 162
165 - 168 - 170 - 172 - 175 - 178
180 - 182 - 185 - 188 - 190 - 192
195 - 198 - 200 - 205 - 210 - 215
220 - 225 - 230
|
CR
FCR
FCR MX
PE
PJ
PWK
PWM |
6,64 Euro
|
99101-393-Size |
Head diameter: 6mm
Thread: M5
Overall length: 8,0mm
Thread length: 5,0mm
|
90 - 92 - 95 - 98 - 100 - 102
105 - 108 - 110 - 112 - 115 - 118
120 - 122 - 125 - 128 - 130 - 132
135 - 138 - 140 - 142 - 145 - 148
150 - 152 - 155 - 158 - 160 - 162
165 - 168 - 170 - 172 - 175 - 178
180 - 182 - 185 - 188 - 190 - 192
195 - 198 - 200 |
OEM CV
OEM CVK
|
4,96 Euro
|
| PILOT JETS |
| Part Number |
Details |
Available sizes |
Application |
Price
without tax |
N424-21-Size |
Shaft diameter: 5,0mm
Head top to thread: 10,5mm
Thread: M6x0,75
Overall length: 28,0mm
Thread length: 4,0mm
Emulsion tube diameter: 3,0mm
Emulsion tube length: 9,5mm
Number of cross-bore: 8 |
35 - 38 - 40 - 42 - 45 - 48
50 - 52 - 55 - 58 - 60 - 62
65 - 68 - 70 - 72 - 75 - 78
80 |
FCRMX
PE20
PE26-30
PJ
PWM38
PWK |
6,97 Euro
|
N424-22-Size
|
Shaft diameter: 5,5mm
Thread: M4,5
Overall length: 28,0mm
Thread length: 3,5mm
Emulsion tube diameter: 3,0mm
Emulsion tube length: 7,5mm
Number of cross-bore: 8 |
35 - 38 - 40 - 42 - 45 - 48
50 - 52 - 55 - 58 - 60 - 62
65 - 68 - 70 - 72 - 75 - 78
80 |
PE34-38 |
6,97 Euro
|
N424-24-Size |
Shaft diameter: 5,5mm
Thread: M3,5
Overall length: 32,0mm
Thread length: 4,0mm
Emulsion tube diameter: 2,0mm
Emulsion tube length: 8,0mm
Number of cross-bore: 6 |
35 - 38 - 40 - 42 - 45 - 48
50 - 52 - 55 - 58 - 60 - 62
65 - 68 - 70 - 72 - 75 - 78
80 |
CR |
9,75 Euro
|
N424-25-Size |
Head diameter: 5,5mm
Head length: 3,0mm
Thread: M4,5
Overall length: 15,0mm
Thread length: 3,5mm
Emulsion tube diameter: 2,5mm
Emulsion tube length: 8,5mm
Number of cross-bore: 8 |
35 - 38 - 40 - 42 - 45 - 48
50 - 52 - 55 - 58 - 60 - 62
65 - 68 - 70 |
FCR
OEM CV
OEM CVK |
6,22 Euro
|
| AIR JETS |
| Part Number |
Details |
Available sizes |
Application |
Price
without tax |
99101-124-Size |
Head diameter: 5,5mm
Thread: M7
Overall length: 8,5mm
Thread length: 6,0mm
|
50 - 52 - 55 - 58 - 60 - 62 - 65
68 - 70 - 72 - 75 - 78 - 80 - 82
85 - 88 - 90 - 92 - 95 - 98 - 100
102 - 105 - 108 - 110 - 112 - 115
18 - 120 - 122 - 125 - 128 - 130
-----------------------
Air jet et can be substituted
with pilot air screw kit !!!
Part number: TOP-FCR-LLLS |
Pilot air
CR |
9,58 Euro
|
99101-393-Size |
Head diameter: 6mm
Thread: M5
Overall length: 8,0mm
Thread length: 5,0mm
|
990 - 92 - 95 - 98 - 100 - 102
105 - 108 - 110 - 112 - 115 - 118
120 - 122 - 125 - 128 - 130 - 132
135 - 138 - 140 - 142 - 145 - 148
150 - 152 - 155 - 158 - 160 - 162
165 - 168 - 170 - 172 - 175 - 178
180 - 182 - 185 - 188 - 190 - 192
195 - 198 - 200 |
Main air
FCR |
4,96 Euro
|
N424-14-Size |
Wrench size: 5,5mm
Thread: M5
Overall length: 22,0mm
Thread length: 6,5mm
Hexagon length: 15,0mm |
50 - 80 - 90 - 100 - 110
120 - 130 - 140 - 150 - 160 - 170
180 - 190 - 200 - 210 - 220 - 230
240 - 250 - 260 - 280 |
Main air
CR |
6,47 Euro
|
|
|
